Hiperlink
Evolution ATRH0510
5 GHz TDMA Point-to-Point / Point-to-Multipoint Outdoor Wireless

Main features

  • Point-Point/Multipoint system TDMA 5 GHz (HIPERLAN)
  •  “N” connector for the antenna
  • Hight resilint painting
  •  Internazional standard 802.11 a/b/g
  • Power suply Power Over Ethernet (P.O.E.) 48Vdc or 12Vdc
  • Internal Electronic circuit agaist overvoltages
  • Option: RF band pass filter  (5GHz)
  • Option: Powered by solar panels
  • Turbo mode 108Mbps
  • Radio type OFDM or DSSS
  • NLOS system
  • Plug’n’Play
  • Point-Point/Multipoint system TDMA 5 GHz (HIPERLAN)
  •  “N” connector for the antenna
  • Hight resilint painting
  •  Internazional standard 802.11 a/b/g
  • Power suply Power Over Ethernet (P.O.E.) 48Vdc or 12Vdc
  • Internal Electronic circuit agaist overvoltages
  • Option: RF band pass filter  (5GHz)
  • Option: Powered by solar panels
  • Turbo mode 108Mbps
  • Radio type OFDM or DSSS
  • NLOS system
  • Plug’n’Play
Download datasheet Quote

Product Description

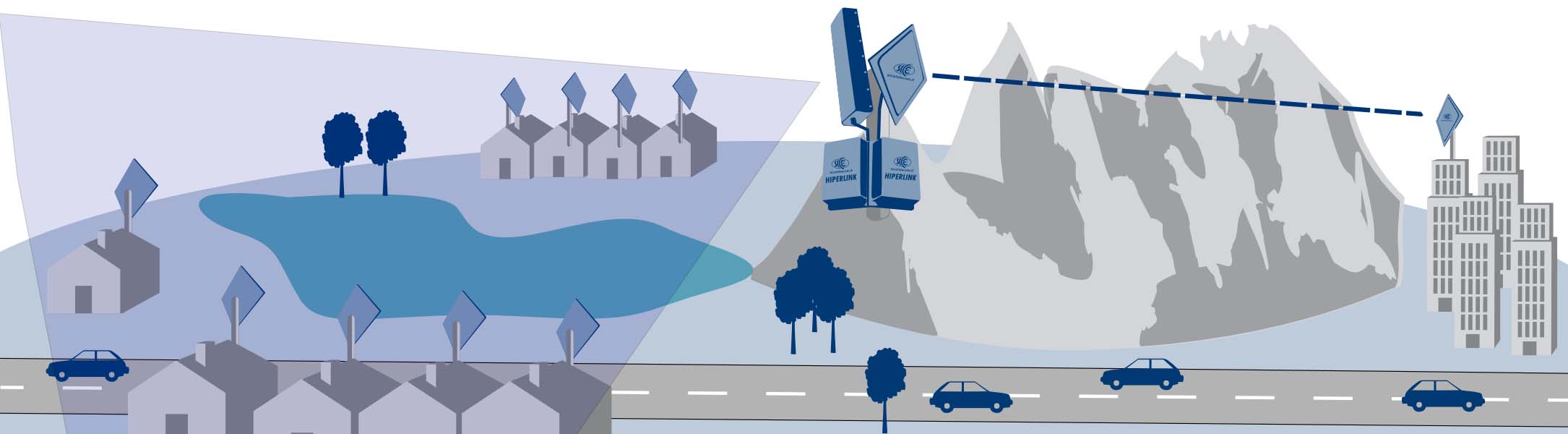

HYPERLINK ATRH0510 is a Point-to-Point / Point-to-Multipoint  Outdoor TDMA system, able to make long-distance backbones  using directional antennas, or sectorial antennas.   ‘Networks can be constructed in bridge (layer 2) or routed mode (Layer 3) using on-board routing protocols, such as OSPF, BGP, MPLS.



The product family HYPERLINK ATRH0510 in multipoint mode is completed with the apparatus CPE, Subscriber Unit, also with cutting-edge features.



HYPERLINK ATRH0510 is supplied as standard with the AC to 48V Power Over Ethernet. It ‘also available in 12V to provide power through batteries or solar cells .—
The robustness of the system and the degree of protection IP68 watertight apparatuses, allows you to install these systems in the most difficult parts such as marine environments, in high altitude mountains or desert areas.

HYPERLINK ATRH0510 is widely used in the creation of networks for Wireless Service Provider, urban security and video surveillance, Carrier, Military Bodies, Public Sector, Universities and Disaster Recovery.



 The software ensures great flexibility and allows the complete control of the System both from the physical point of view that from the functional point of view. It provides the latest generation functionalities for VPN, data security, encryption, IP assignment, Software Update remotely and SNMP Agent.

Applications

Wireless Internet Service Provider – WISP

Security and  videosurveillance

System Integrator

Carrier

 private Wireless Point-Multipoint

Emergency back up / Disaster Recovery

Army, Government, Campus

To replace  CDN, HDSL fixed lines or Optical fibre

Specifications

Operational Frequency 4,9-5,85 GHz (available @2.4GHz)
Modulation DSSS DBPSK, DQPSK, CCK
Modulation OFDM BPSK, QPSK, 16 QAM, 64 QA
Output Power 30 dBm EIRP
Sensitivity -91 dBm@ 6 Mbit/s ± 1dB (typical)
RF Output with "N"connector /Fem. 50Ω
RF Filters SICE band pass filter @ 5 GHz (optional)
Channel management and Transmit power management DFS (Dynamic Frequency Selection), Auto Channel Selection,Radar free TPC function
Standard Ethernet 802.3 CSMA/C
Power supply and power consumption POE 48 VDC 802.3 af or POE 12 VDC/24VDC 11W
Protection Electronic circuit against lightening
Protezione degree Waterproof IP68 die cast aluminum Enclosure
Temperature range -40°C / + 55°C
Pole mounting Poles mm 40/70 - inox steel
Mechanical Characteristics 190 mm x 280 mm x 110 mm
weight 4,4 Kg (external antenna)
Bridge Multiple bridge interfaces, Protocol can be selected to be forwarded or discarded, MAC Address table can be monitored in real time; RSTP Rapid Spanning Tree Protocol
Available External Antennas Direttive Grid, Panel or Dish
Operative mode Dynamic Mesh, Static WDS Mesh, Bridging, Routing, Point-to-Point e Point-to-Multipoint
Management mode and configuration Telnet, client, Telnet server, MAC Telnet server, SSH, SSH GUI, http
VPN support IPSEC, EoIP, PPtP, VLAN, L2TP, PPPoE, IPIP
IP management DHCP client, DHCP server
Ethernet port Fast Ethernet 10/100 Full Duplex, Autosensing
VLAN 802.1q, Multiple VLAN interface, inter VLAN routing
software upgrade, backup and recover Via FTP and Drag and Drop directly from system folders
Security WPA2 (EAP, AES, TKIP), DFS, TPC, Mac filtering
Network Management Encryption, Authentication WPA2 , WPA, WEP AES CCM & TKIP Encryption Firewall integrated ;INTEGRATED ROUTER Peer to Peer protocol limitation MAC ADDRESS authentication & filtering IP address filtering & protocol filtering RADIUS server Authentication (AAA)
Access protection Multilayer users management
Agent SNMP SNMP V1 client, MIB II, Bridge MIB
QoS 802.1p (Layer2 traffic priority) IPToS RFC791 (Layer3 traffic priority) CBQ Queuing Layer 4-7 traffic shaping Hierarchical HTB QoS system with bursts PCQ, RED, SFQ, FIFO queue; CIR, MIR Contention ratios, dynamic client rate equalizing

Ordering information

ATRH0510

HIPERLINK Point-point/Pnt-Multipoint 5 GHz; n.1 radio,RF Output with "N" connector,Pole mounting and POE power supply
